characteristic description：

● All-metal wetted parts construction

● Compact, long-life design with no consumable parts

● In-line pressure reducing configuration with an adjustable stem

● Capable of handling fluids containing particulate impurities; features online self-cleaning capability

● Operating pressure range: 500 to 5,000 psi

● Suitable for precise adjustment in high-pressure/ low-flow single-point sampling applications

● Provides precise linear flow control

● Optional electric actuator available for remote operation

● Each valve is cleaned and packaged in accordance with USELL standards

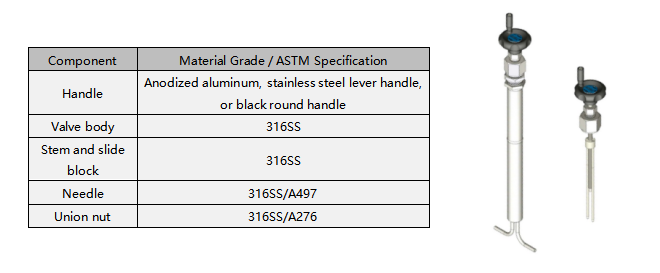

structural material:

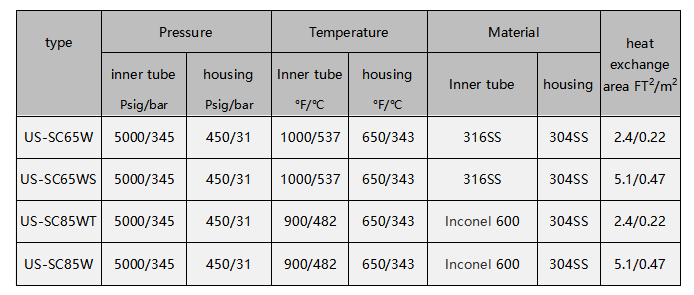

design parameters：

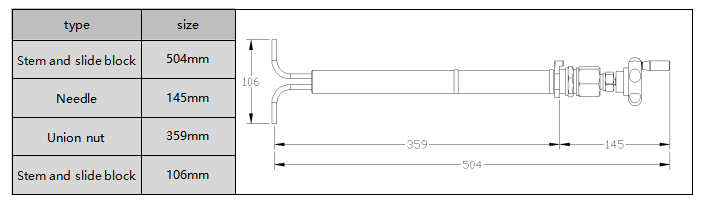

structural dimensions：
