Product advantages:

● Body materials: stainless steel or brass

● Diaphragm material: 316L

● Seat material: PCTFE

● High sensitivity and excellent stability at set pressure points

● Minimal internal volume design

● Each valve is factory leak-tested with nitrogen at its rated pressure to achieve no detectable leakage

● Each valve is cleaned and packaged in accordance with USELL standards

Technical data：

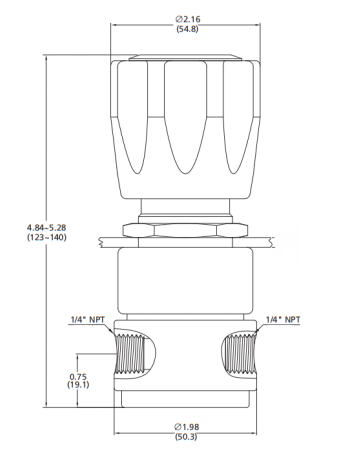

Structural dimensions：

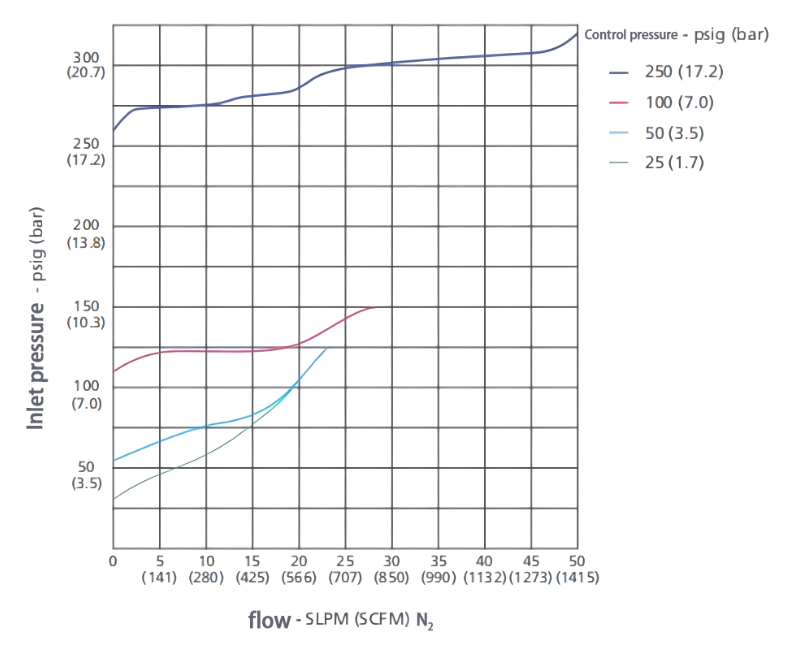

Flow curve：

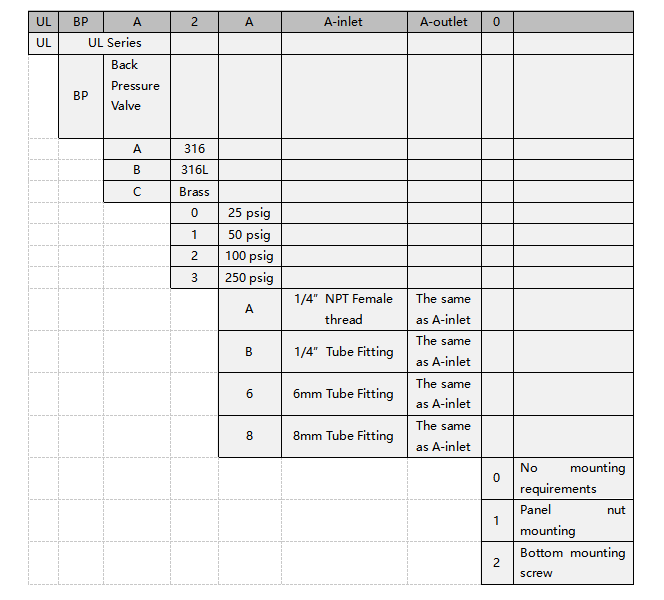

Selection Guide：
