characteristic description：
● All components are made of 304/316 stainless steel, with Inconel optionally available, and are engineered for years of service at 100% duty cycle
● Forced counterflow: Ensuring maximum thermal efficiency with the minimum amount of coolant
● Easy installation: Includes mounting brackets and connection lines
● Removable housing: Two-piece design allows for easy disassembly and reassembly
● Compact design: Double-wound coil and baffle configuration ensure maximum thermal efficiency
● Asbestos-free: Field-proven asbestos-free gaskets help protect plant personnel
● Each valve is cleaned and packaged in accordance with USELL standards

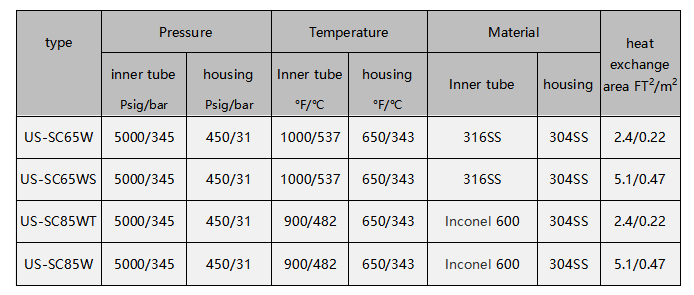

design parameters：

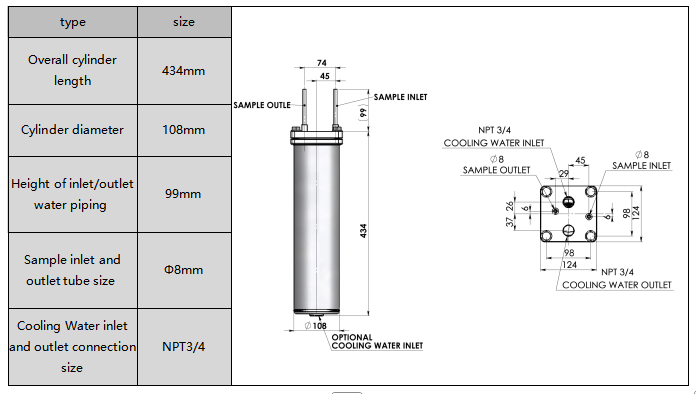

structural dimensions:
