characteristic description：

● Non-actuated, purely mechanical design

● Pressure rating up to 4,400 psi

● Shuts off within 5 seconds after heat source passes through the valve body, with local alarm indication

● Standard temperature setting: 120°F (49°C); other temperatures available upon request

● Each valve is cleaned and packaged in accordance with USELL standards

design parameters：

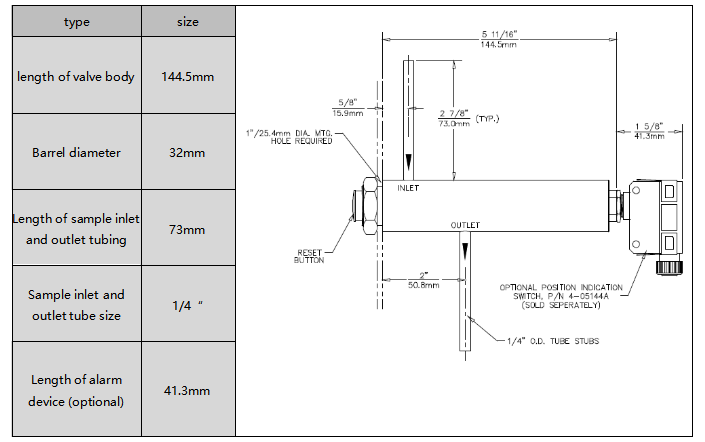

structural dimensions：
